NEW WAVE T5 - 48 4FT/8 LAMP FLORESCENT REFLECTOR

NEW WAVE T5 - 48 4FT/8 LAMP FLORESCENT FIXTURE

These high quality T5 HO (high output) fixtures are fabricated and assembled in the USA with US and globally sourced parts. They feature the reliable Fulham brand multi-volt 120-277 V ballast(s). These special order fixtures are custom-built to operate at 120, 208, 240 or 277 volts. New Wave’s feature a heavy duty white steel housing that is louvered and slotted for efficient cooling. The reflectors are made with 95% reflective German aluminum for maximum reflectance & uniformity. Purchase your choice of lamps separately. These fixtures are custom built only and have a minimum order quantity of 100 units. Lead time to produce is approximately 3-4 weeks.

Features:

• 95% reflective European aluminum reflector.
• Smart Volt® ballasts can run on 120, 208, 240, & 277 volt input power for New Wave™ 42, 44 & 48 only.
• Heavy duty white steel housing.
• Louvered and slotted for efficient cooling.
• 8’ grounded power cord.
• Purchase your choice of lamps separately.
• Each 2ft (24 watt lamp) has 2,000 lumens
• The New Wave T5's exclusive reflector is made of German 95% reflective Aluminum. Light output is 300% higher in our reflector vs a lamp with no reflector
• Major brand solid state electronic ballasts (no copper windings) do not emit heat, noise or vibration.
• High output lamps have an extremely high lumen per watt rating.
• 6500 deg Kelvin lamps are perfect for propagation
• Lamps have a low heat factor which allows the fixture to be hung very close to plant canopy, thus raising light levels.
• Comes standard with chrome V hangers
• Fixtures are low profile, sleek and light to hang
• Optional Sun Lifts (product#710120) are easy to install and allow for convenient vertical height adjustments.
• 2 year warranty.

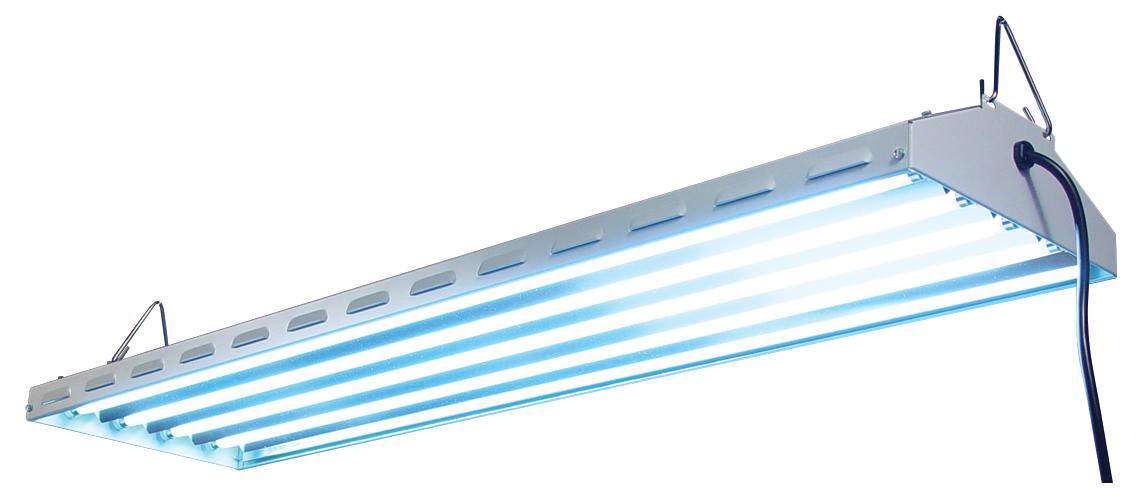

• Shown with optional lamps.

---

Images Of The New Wave T5 -48 - 4ft/8 lamp:

All View	Angle View

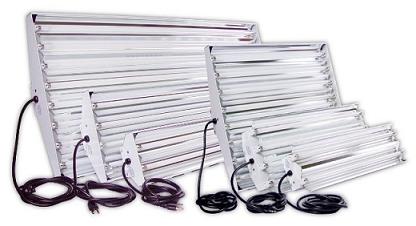

Comparison View

---

Docutments:

960202 - New Wave T5 48 - 4 ft 8 Lamp
	Instructions	(PDF Document)
	Spec Sheet	(PDF Document)
	Tech Guide	(PDF Document)

---

New Wave T5 Is Available In The Following Sizes (see the Related Item tab above):

• 960200-New Wave T5-44-4ft/4 lamp - 20,000 lumens - Dim:47" L x 11" W  x 3.5" H
• 960202-New Wave T5-48-4ft/8 lamp - 40,000 lumens - Dim:47" l x 21" W x 3.5" H
